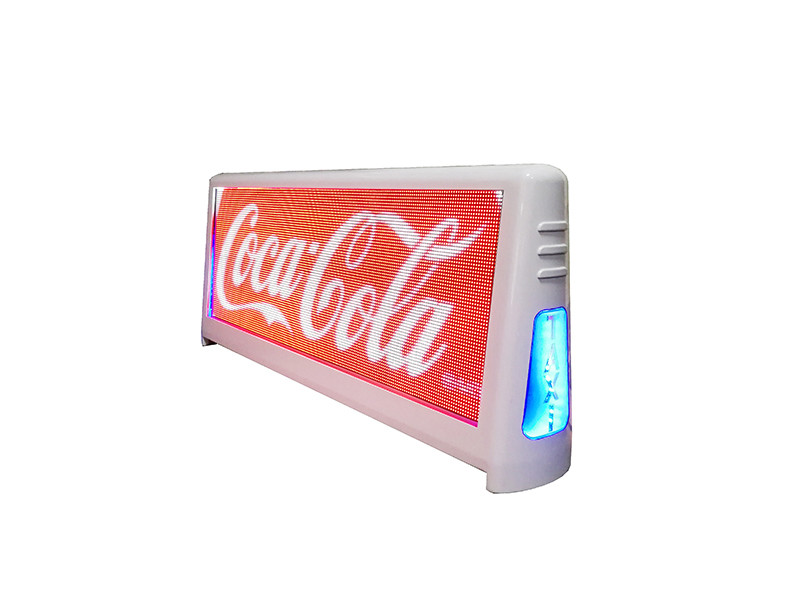

Outdoor P5 Advertising Video Display LED Taxi Car Top Billboard
1. The bus LED display system is mainly composed of bus LED display, wireless LED control card, and LED display control software. With the city bus system, you can display vehicle information, routes, and media information such as weather, announcements, and advertisements.
2. Wireless communication ensures real-time monitoring of media user monitoring and system operation.
3. It uses low-power, high-brightness, constant-current driving lamp beads, which is extremely penetrating during daylight hours and has a lifespan of more than 100,000 hours.
4. The shell adopts integrated aluminum casting mold, which has high strength and strong toughness.
5. It has 12-36V vehicle voltage, and the power supply has over-current and over-voltage protection functions.
6. Wireless communication ensures the real-time and update convenience of information elements.
7. Wireless LED display, support flash, gif image and text format, to broadcast commercial news, while broadcasting information related to city life and headline news, etc.
- Technical parameter of P5 Taxi LED Display
| Model Number | P5-TY005 |
| Module size | 320mm*160mm |
| Pixel pitch | 5mm |
| Pixel configuration | 1R1G1B |
| Package mode | SMD2727 |
| Drive type | Constant drive |
| Scan mode | 1/8scan |
| Brightness of white balance | ≥6500cd/m2 |
| cabinet material | Die-casting aluminum |
| Dimension | 1090*435*167mm |
| dispaly area | 960*320mm |
| Control method | 4G wireless |
| Net wight | 20.9KG |
| Power supply | DC9-36V |
| Resolution | 192*64 |
| Best viewing distance | 4M~30M |
| Best viewing angle | 160°(W) 140°(H) |
| Temperature | storage:-35℃~+85℃ |
| working:-20℃~+50℃ |
| Relative humidity | 10%-95% |
Q1:What about the warranty?
A:Three year warranty
Q2:What about the lead time?
A:Orders less than 50 square meters display ,lead time is 16 days.
Q3:Can I order a sample?
A:Yes.We welcome customers to order sample to check the quality and service.
Q4: To order a display, what information should l offer you?
A:You should provide width and height of the display, the main usage, the viewing distance, the scene photo and special requirements, then I can provide you a quotation. Sometimes you should also provide information such as geographical location, local climate.
Q5:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance, wiring diagram and free remote debugging .We can also send our engineers to the site to guide the installation.
Q6:LED display models are generally expressed in PX, such as P2 P3 P4....P8 P10.What does this mean?
A: P2 P3 P4.....P8 P10 means the pixel pitch is 2mm 3mm 4mm....8mm 10mm,which determines the number of pixels per unit area of a display. So it represents the clarity of the display. The smaller the pitch, the higher the clarity. Usually, the models of indoor full color display are P1.875,P2.5,P3,P4,P5. Outdoor full color display are P4,P5,P6,P8,P10.
